     SVD306 Camera      The plettac SVD306 Speed Vision Dome

The plettac SVD306 Speed Vision colour CCTV Dome camera.... The SVD306 features full PTZ using the plettac FWE protocol.... we still hold stock of some older Speed Vision Domes, contact us for more info....

PL2000 on site

plettac
SVD306 CCTV
Dome camera
with wall mount

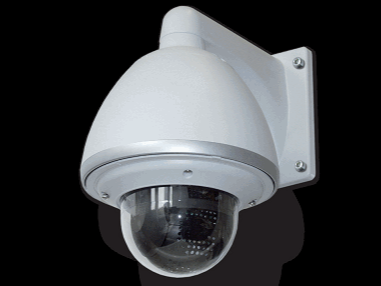

The plettac SVD306
Speed Vision Dome Camera


The new Speed Vision Dome
 is a high-performance security
 and monitoring system for both stand-alone applications
 and integration in highly
 complex security and
 management systems

SVD306 replaces the previous SVD206
and SVD106

The high-resolution camera in combination
 with the 36-fold precision lens provides
 brilliant images with excellent detail
 reproduction even with low target lighting, optionally with or without auto focus mode
The new pivoting and tilting direct-drive
 system allows ultra-precision positioning

 PL2000 camera
SVD306 Specifications
1/4" interline transfer CCD
Video CVBS 1.0 Vpp 75 ohm
High sensitivity 0.04 lx bw, 0.5 lx colour
Effective Back Light compensation
Automatic Day Night mode
Private masking (10 editable masks)
Zoom 36 x optical (32 x digital)

True Day/Night with IR Cut Filter

Ceiling or Wall mount available



plettac has long been
 the leading manufacturer and supplier of top of the range
 CCTV cameras and related products within this exciting marketplace
Our reference list of projects
 shows our
 total involvement and commitment to providing the right
 security solution
 across many
 public and private sector areas


Sense

Standard Features of the SVD range

Power Requirements:
24 V AC ±10 % 50/60 Hz 1.3 A
Temperature range -10 °C to +50 °C
Synchronization: Internal, Line Lock
Motion detection and tracking
Fast and simple installation (without screws)
Environmental Rating IP66
Image stabilization
Display mode for LCD and CRT displays
View PDF sheet of the plettac SVD306


PDF Logo
FAC858 Rear view
plettac
SVD306 camera with Ceiling mount
